LDA SIngle Girder Overhead Crane Electric Drive A3 With Hoist 8m/Min

Name: LDA SIngle Girder Overhead Crane Electric Drive A3 With Hoist 8mMin
Brand: KUANGYUAN
Price: 3580 USD

China LDA SIngle Girder Overhead Crane Electric Drive A3 With Hoist 8m/Min wholesale

Brand Name : KUANGYUAN

Model Number : LDA

Certification : CE ISO GOST

Place of Origin : Henan,China

MOQ : 1Set

Price : USD 3580-7400

Payment Terms : L/C, T/T

Supply Ability : 10000 Sets per Year

Delivery Time : 30~40 work days

Packaging Details : Electrical and other parts packed by high quality plywood crate,Beams packed by plastic woven cloth.

Product Name : LDA SIngle Girder Overhead Crane Electric Drive A3 With Hoist

Working Class : A3

lifting weight : 1T,2T,3T,5T,10T,16T,20T

lifting height : 6m,9m,12m,18m,24m,30m

lifting speed : 8m/min

traveling speed : 20m/min

motor : cone squirrel-cage model

electric current : 380V 50Hz three-phase

control method : Pendent Line+Wireless Remote

warranty : 1.5 years

Contact Now

PRODUCT BRIEF

LDA SIngle Girder Overhead Crane Electric Drive A3 With Hoist

The LDA Series is a basic crane ,designed for everyday use. LDA type single girder overhead crane is widely used in plants warehouses,material storage to lift goods because of their characteristics of strong rigidity, delicate operation, low noise, no pollution, safety and reliability. Applicable scope: environment as no fire, no explosive danger and no corrosive media exist.

LDA SIngle Girder Overhead Crane Electric Drive A3 With Hoist 8m/Min

FEATURES AT A GLANCE

1). Wheels, wire rope drum, gears, couplings are processed by CNC machine center, TOP quality control;
2). Heavy duty slip ring motor, or Sq.cage motor with VVVF, IP54 or IP44, insulation class F or H, soft starting and smooth running.
3). SIEMENS main electric parts are used for durable and safe operation.

Capacity	1~20ton
Span	7.5m~22.5m
Speed	Single speed , double speed
Usage	Normal workshop, warehouse
control	Pendant control, remote control
Lifting tool	Electric hoist

LDA SIngle Girder Overhead Crane Electric Drive A3 With Hoist 8m/Min

Advantage of crane main beam/girder

The U shape slot with high precise is made by cold bend one-step forming technology, which avoid polish, cutting and welding etc. such complicated production process, it can reduce the deformation of single beam/girder overhead crane during loading and transportation, thus, it can ensure the precise of main beam/girder, reduce the welding stress and welding fatigue during travelling. Meanwhile, it greatly increases the strength of whole crane, improve working efficiency and appearance quality.

End carriages

The end carriage mainly consists of drive and driven wheels, long travelling motor, reducer and buffer.

Crane wheel

Wheels are vacuum casting and medium frequency quenching, increase the hardness, toughness, more wear resistant and strong anti deformation ability.

Wire rope electric hoist

Wire rope electric hoist is the lifting equipment of the crane, it can lift goods up and down, travel along the crane from the left side to the right side. It can also travel on the I-beam or H-beam.
 It mainly consists of electric trolley, drum, lifting motor, travelling motor, reducer, hook, wire rope, rope guide device, lifting limit switch, weight overload limiter etc.
 According to the lifting speed, the wire rope electric hoist divides into two types: CD type and MD type.
 CD type is single lifting speed, which is widely used. MD type is double lifting speed realized by double speed motor, one is normal speed, the other is slow speed. This type is suitable to lift precise instrument, fragile and valuable objects.

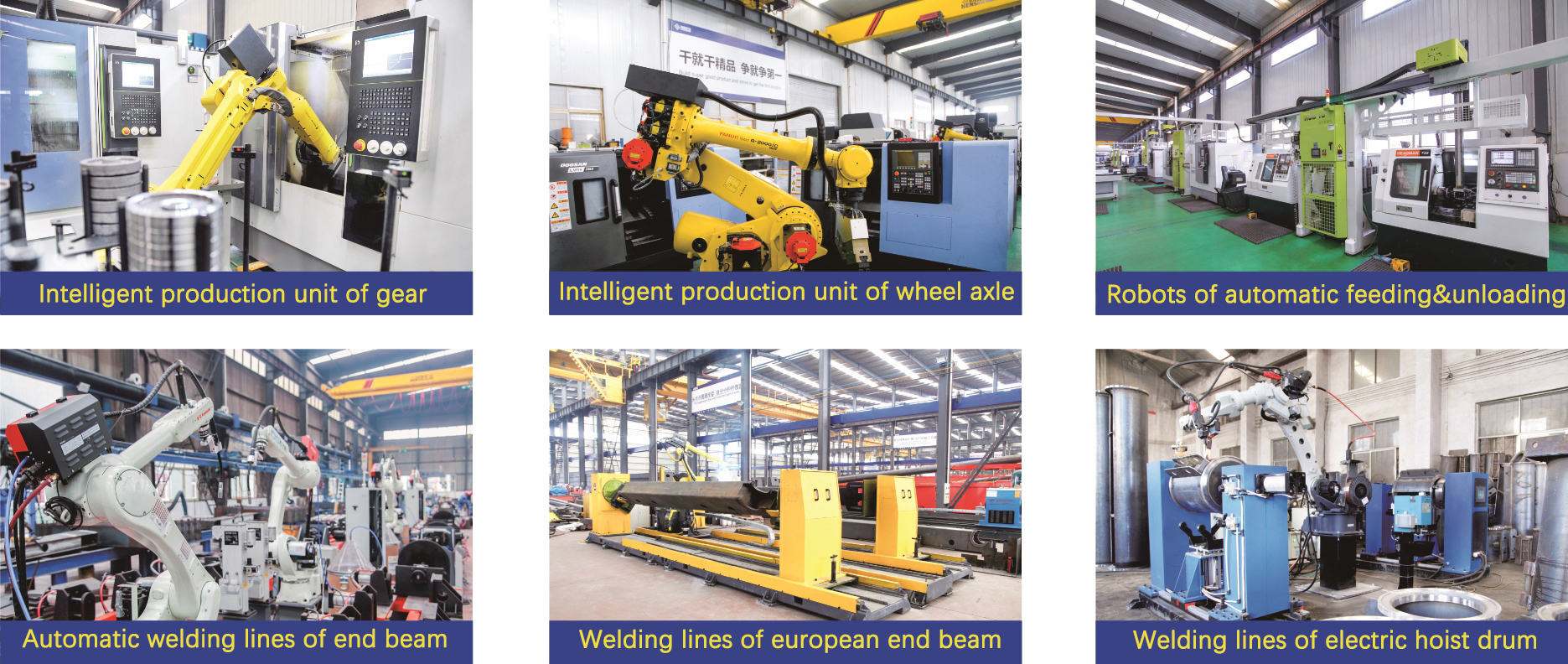

COMPANY PROFILE

CONTACT US

Are you interested in this LDA series single girder overhead crane?We are ready to quote for you according to your customizable paremeters as follows.
(kindly please provide the following information when sending enquiry to us.)
1. Lifting capacity :_____ton
2. Span :______meters (it is center to center distance between railways)
3. Lifting height :_____meters (it is the distance from center of hook to floor)
4. Travelling length:_____meters
5. Industrial voltage _____V, _____HZ, 3Phases
6. Control mode: Pendent or Remote control or cabin control?
7. Do you also need us to supply rail and bus bar: YES or NO?
8. What material to be lifted?

Welcome your requirements.
